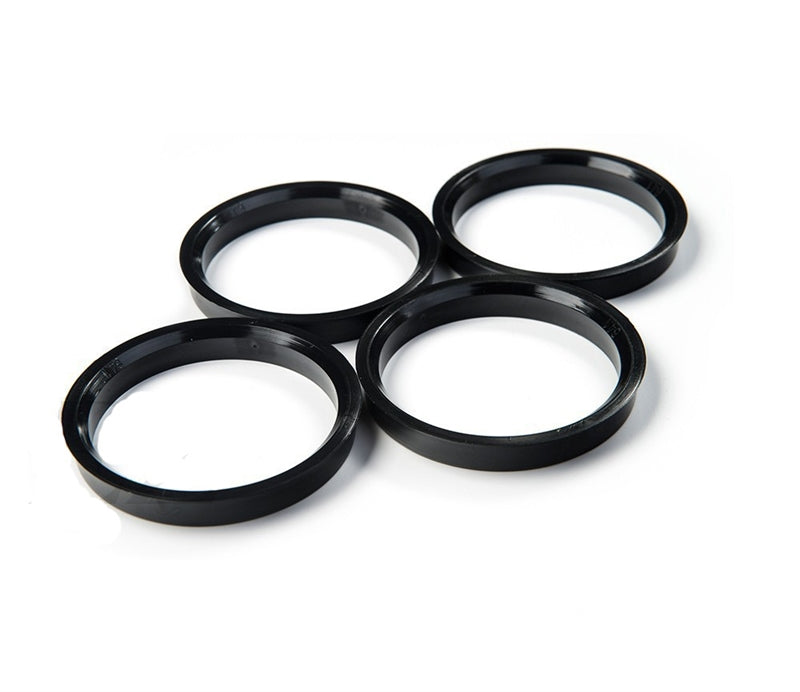

Hub Centric Ring O.D 70mm I.D. 58.5mm
One set of 4 hub centric rings with O.D. (outer diameter) of 70mm and I.D. (inner diameter) of 58.5mm. These rings are made of high quality poly carbon. To determine proper fitment you need to do a couple of things. First you need to determine the center bore size, i.e. O.D. of the aftermarket wheel. Contact your wheel dealer if needed. Then find out the vehicle hub size, i.e. I.D. When these match our hub ring description, then they are the right size.
Size:
Fitment and specs
- Outer diameter (O.D.): 70mm, matches the wheel center bore
- Inner diameter (I.D.): 58.5mm, matches the vehicle hub
- Sold as a set of 4 rings
- Made of high quality polycarbon
- Adapts aftermarket wheels with a 70mm bore to a 58.5mm hub
Clean the hub face, then press a ring into the center bore on the back side of each wheel until it seats flush. Mount the wheel as usual; it slides onto the hub already centered, so the lug holes line up on the first try. A firm hand press is normally all it takes.
Common questions
How do I verify 58.5mm is my hub size?
Measure across the raised center lip of your vehicle hub with calipers; it should read 58.5mm. Then confirm your wheel center bore measures 70mm, either with calipers or by asking your wheel dealer.
Do hub rings wear out or need replacing at tire changes?
No regular replacement is needed. The rings stay pressed in the wheel bore and are reusable; just give them a quick look whenever the wheels are off and press any ring that has shifted back into place.
