5x4.5 (114.3mm) Wheel Adapters
Filters

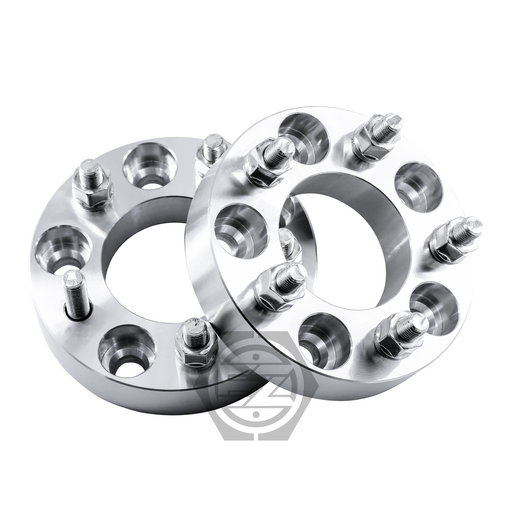

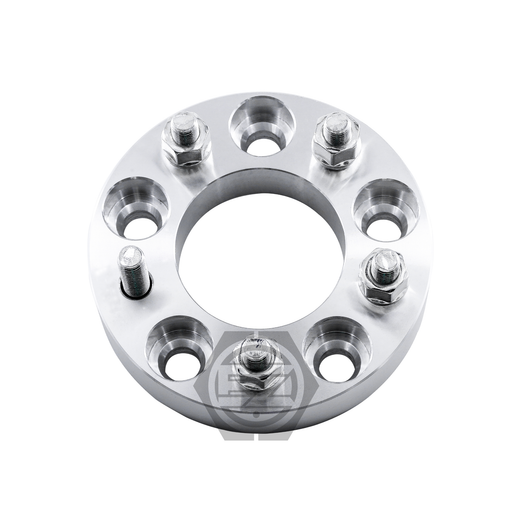

5x4.5" Wheel Spacers | Bolt-On, 1/2" Studs (Pair)
Converts from (hub) 5x4.5" (5x114.3mm) Converts to (wheel) 5x4.5" (5x114.3mm) Center bore 73mm Thickness options 0.75", 1", 1.25", 1.5", 2"...
View full details5x4.5" Hub Centric Wheel Spacers | Bolt-On, 70.6mm Bore (Pair)
Bolt pattern(s) 5x4.5" (5x114.3mm) Stud thread 1/2" Thickness options 1", 1.25", 1.5", 2" Material 6061-T6 billet aluminum Centering Hu...
View full detailsHub Centric Wheel Adapter 5x4.5 Jeep to 5x5 Jeep (Pair)
Converts from (hub) 5x4.5" (5x114.3mm) Converts to (wheel) 5x5" (5x127mm) Center bore 71.5 wheel side Stud thread 1/2" Thickness options ...
View full details5x4.5" Hub Centric Wheel Spacers | Bolt-On, 66.1mm Bore (Pair)
Bolt pattern(s) 5x4.5" (5x114.3mm) Center bore 66.1mm Stud thread 12x1.25 Thickness options 1", 1.25" Material 6061-T6 billet aluminum ...
View full details5x4.5" Hub Centric Wheel Spacers | Bolt-On, 67.1mm Bore (Pair)
Bolt pattern(s) 5x4.5" (5x114.3mm) Center bore 67.1mm Stud thread 12x1.5 Thickness 1" Material 6061-T6 billet aluminum Centering Hub ce...
View full details5x4.5" Hub Centric Wheel Spacers | Bolt-On, 60.1mm Bore (Pair)
Bolt pattern(s) 5x4.5" (5x114.3mm) Center bore 60.1mm Stud thread 12x1.5 Thickness 1" Material 6061-T6 billet aluminum Centering Hub ce...
View full details5x4.5" Hub Centric Wheel Spacers | Bolt-On, 71.5mm Bore (Pair)
Bolt pattern(s) 5x4.5" (5x114.3mm) Center bore 71.5mm Stud thread 1/2" Thickness options 1.5", 2" Material 6061-T6 billet aluminum Cent...
View full details5x4.5" Wheel Spacers | Bolt-On, 14x1.5 Studs (Pair)
Converts from (hub) 5x4.5" (5x114.3mm) Converts to (wheel) 5x4.5" (5x114.3mm) Center bore 73mm Stud thread 14x1.5 Thickness 1" Sold as ...
View full details5x4.5" Hub Centric Wheel Spacers | Bolt-On, 64.1mm Bore (Pair)
Bolt pattern(s) 5x4.5" (5x114.3mm) Center bore 64.1mm Stud thread 12x1.5 Thickness 1" Material 6061-T6 billet aluminum Centering Hub ce...
View full details5x4.5" Hub Centric Wheel Spacers | Bolt-On, 56.1mm Bore (Pair)
Bolt pattern(s) 5x4.5" (5x114.3mm) Center bore 56.1mm Stud thread 12x1.25 Thickness 1" Material 6061-T6 billet aluminum Centering Hub c...
View full detailsThese 5x4.5" (5x114.3mm) bolt-on wheel spacers, also sold as 5x4.5 to 5x4.5 wheel adapters, keep the 5x4.5 bolt pattern and move the wheel out by their thickness, from 0.75" to 3". Nine of the ten pairs here are same-pattern spacers, and seven of those are hub centric. The tenth is a hub centric 5x4.5 to 5x5 wheel adapter.
5x4.5" bolt-on spacer and adapter guide
Every listing is a pair, described here by its own spec table.
- 5x4.5" bolt-on spacer pair, 1/2" studs, 73mm bore, 0.75" to 3" thick: 6061-T6 billet aluminum in 0.75", 1", 1.25", 1.5", 2" and 3". The 1/2" stud thread comes from the listing title, since the spec table has no stud thread row.
- 5x4.5" bolt-on spacer pair, 14x1.5 studs, 1" thick: 73mm center bore.
- 5x4.5" hub centric spacer pair, 1/2" studs, 1" to 2" thick: in 1", 1.25", 1.5" or 2". The spec table lists no center bore, so check the bore on the product page.
- 5x4.5" hub centric spacer pair, 71.5mm bore, 1/2" studs: 1.5" or 2" thick.
- 5x4.5" hub centric spacer pair, 66.1mm bore, 12x1.25 studs: 1" or 1.25" thick, wheel studs pre-installed.
- 5x4.5" hub centric spacer pair, 67.1mm bore, 12x1.5 studs: 1" thick, wheel studs included.
- 5x4.5" hub centric spacer pair, 64.1mm bore, 12x1.5 studs: 1" thick, wheel studs included.
- 5x4.5" hub centric spacer pair, 60.1mm bore, 12x1.5 studs: 1" thick, wheel studs included.
- 5x4.5" hub centric spacer pair, 56.1mm bore, 12x1.25 studs: 1" thick, wheel studs included.
- 5x4.5" to 5x5" hub centric adapter pair, 1.25" or 2" thick: changes the pattern from a 5x4.5" (5x114.3mm) hub to a 5x5" (5x127mm) wheel. 1/2" stud thread, center bore listed as 71.5 wheel side.
Vehicles we have verified with a 5x4.5" (5x114.3mm) hub include Honda Element 2003–2011, Honda HR-V 2016–2026, Nissan 350Z 2003–2009, Nissan 370Z 2009–2020, Nissan Murano 2003–2026, Toyota RAV4 1996–2026, Mazda CX-5 2013–2026, Ford Fusion 2006–2012, Tesla Model Y 2020–2026 and Subaru Outback 2015–2026. Hub pattern only: match the stud thread and center bore on the product page.
Common questions
Do 5x4.5 bolt-on spacers change my bolt pattern?
No. A same-pattern spacer is 5x4.5" on the hub side and the wheel side. The one exception here is the 5x4.5 to 5x5 adapter. Not sure what you have? See how to measure a bolt pattern.
Which center bore do I need?
These specs list 56.1mm, 60.1mm, 64.1mm, 66.1mm, 67.1mm, 71.5mm and 73mm. For the hub centric pairs, measure your hub and your wheel's center bore and choose the listing whose bore matches both. The two 73mm pairs are not listed as hub centric, and one hub centric pair has no bore in its spec table. A vehicle name alone does not confirm a bore. The three hub centric listings with 1/2" studs also ask for a factory hub height of no more than 20mm, so read that note on the product page.
What torque should I use?
Torque to your vehicle's spec with our torque reference chart and re-torque after the first 50 to 100 miles.
Need to change patterns instead? Browse all 5x4.5" (114.3mm) hub wheel adapters, the full 5 lug same pattern wheel adapters range, or every bolt-on wheel spacer. Free US shipping on all wheel adapters.
