Ball Seat Lug Bolt

Ball Seat Lug Bolts

Ball seat lug bolts use a rounded, radius seat that matches the spherical lug holes on many Mercedes, Audi, VW and Porsche factory wheels. Stocked in 12x1.5, 14x1.5.

Browse lug bolts: conical seat, all lug bolts, spline drive, black finish, tuner seat and lock sets.

Choosing ball seat bolts

Confirm your wheel's seat is rounded rather than a straight taper, then match thread (12x1.5 and 14x1.5 stocked) and shank length, adding spacer thickness if you run spacers. Lock versions are available for theft deterrence.

Common questions

How do I tell ball seat from conical? Set your current bolt against a flat edge: a ball seat curves like a dome; a conical seat is a straight 60 degree angle. The wheel hole shows the same shape.

Do aftermarket wheels use ball seat? Rarely. Most aftermarket wheels are conical; ball seat is mainly a factory European design. Changing wheel types usually means changing bolts.

Can I reuse factory bolts with spacers? No, you need longer shanks: stock length plus spacer thickness, to keep full thread engagement in the hub.

For tightening specs check the torque chart; to confirm sizing, the fitment guide walks through it.

Ships from our Los Angeles warehouse. Phone: (800) 505-8758.

Filters

Save $0.50 Save $0.00

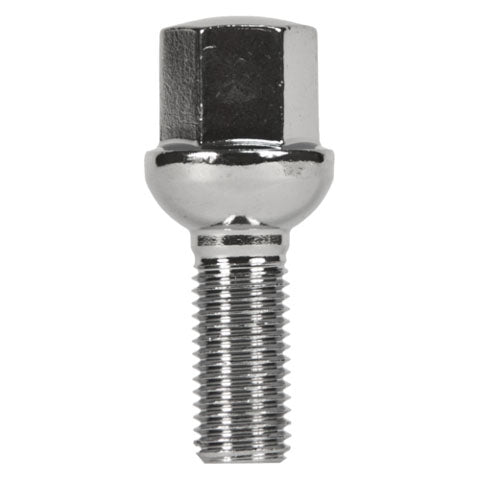

Lug Bolt 12x1.50 Ball Seat 39mm Shank Mercedes

$2.49
$2.49 - $2.49
$2.49
$1.99
$1.99 - $1.99
$1.99

Ball seat style 12mm x 1.50 threads lug bolts. The shank length is 39mm and the total length is 63mm. The hex size is 17mm. These lug bolts fit man...

View full details
$2.49
$2.49 - $2.49
$2.49
$1.99
$1.99 - $1.99
$1.99
Save $0.50 Save $0.00
Save $0.50 Save $0.00

Lug Bolt 12x1.50 Ball Seat 27mm Shank

$2.49
$2.49 - $2.49
$2.49
$1.99
$1.99 - $1.99
$1.99

Ball seat style 12mm x 1.50 threads lug bolts. The shank length is 27mm and the total length is 54mm. The hex size is 17mm. These lug bolts fit man...

View full details
$2.49
$2.49 - $2.49
$2.49
$1.99
$1.99 - $1.99
$1.99
Save $0.50 Save $0.00
Save $0.80 Save $0.00

Lug Bolt 12mmx1.50 Ball Seat 45mm Shank

$2.79
$2.79 - $2.79
$2.79
$1.99
$1.99 - $1.99
$1.99

Ball seat style 12mm x 1.50 threads lug bolts. The hex size is 17mm. The shank length is 45mm and the overall length is 70mm. These lug bolts can f...

View full details
$2.79
$2.79 - $2.79
$2.79
$1.99
$1.99 - $1.99
$1.99
Save $0.80 Save $0.00
Save $0.60 Save $0.00

Lug Bolt 12x1.50 Ball Seat 60mm Shank Mercedes

$3.19
$3.19 - $3.19
$3.19
$2.59
$2.59 - $2.59
$2.59

Ball seat style 12mm x 1.5 threads lug bolts. The shank length is 60mm and the total length is 80mm. The hex size is 17mm. Please refer the followi...

View full details
$3.19
$3.19 - $3.19
$3.19
$2.59
$2.59 - $2.59
$2.59
Save $0.60 Save $0.00
Save $1.10 Save $0.00

Lug Bolt 12mmx1.50 Ball Seat 39mm Shank Mercedes

$3.99
$3.99 - $3.99
$3.99
$2.89
$2.89 - $2.89
$2.89

Ball seat style 12mm x 1.50 threads lug bolts. The hex size is 17mm. The shank length is 39mm and the overall length is 95mm. These lug bolts used ...

View full details
$3.99
$3.99 - $3.99
$3.99
$2.89
$2.89 - $2.89
$2.89
Save $1.10 Save $0.00
Save $0.70 Save $0.00

Lug Bolt 12x1.50 Ball Seat 24mm Shank

$2.49
$2.49 - $2.49
$2.49
$1.79
$1.79 - $1.79
$1.79

Ball seat style 12mm x 1.50 threads lug bolts. The shank length is 24mm and the total length is 48mm. The hex size is 17mm. These lug bolt...

View full details
$2.49
$2.49 - $2.49
$2.49
$1.79
$1.79 - $1.79
$1.79
Save $0.70 Save $0.00
Save $0.60 Save $0.00

Lug Bolt 14mmx1.50 Ball Seat 40mm Shank

$2.79
$2.79 - $2.79
$2.79
$2.19
$2.19 - $2.19
$2.19

Ball seat style 14mm x 1.50 threads lug bolts. The hex size is 17mm. The shank length is 40mm and the overall length is 60mm. These lug bolts can f...

View full details
$2.79
$2.79 - $2.79
$2.79
$2.19
$2.19 - $2.19
$2.19
Save $0.60 Save $0.00
Save $0.60 Save $0.00

Lug Bolt 14mmx1.50 Ball Seat 45mm Shank

$2.99
$2.99 - $2.99
$2.99
$2.39
$2.39 - $2.39
$2.39

Ball seat style 14mm x 1.50 threads lug bolts. The hex size is 17mm. The shank length is 45mm and the overall length is 66mm. These lug bolts can f...

View full details
$2.99
$2.99 - $2.99
$2.99
$2.39
$2.39 - $2.39
$2.39
Save $0.60 Save $0.00
Save $0.60 Save $0.00

Lug Bolt 12x1.50 Ball Seat 55mm Shank Mercedes

$2.99
$2.99 - $2.99
$2.99
$2.39
$2.39 - $2.39
$2.39
In stock

Ball seat style 12mm x 1.5 threads lug bolts. The shank length is 55mm and the total length is 80mm. The hex size is 17mm. Please refer the followi...

View full details
$2.99
$2.99 - $2.99
$2.99
$2.39
$2.39 - $2.39
$2.39
Save $0.60 Save $0.00
Save $0.20 Save $0.00

Lug Bolt 12x1.50 Ball Seat 50mm Shank

$2.99
$2.99 - $2.99
$2.99
$2.79
$2.79 - $2.79
$2.79
In stock

Ball seat style 12mm x 1.50 threads lug bolts. The shank length is 50mm and the total length is 74mm. The hex size is 17mm. These lug bolts fit man...

View full details
$2.99
$2.99 - $2.99
$2.99
$2.79
$2.79 - $2.79
$2.79
Save $0.20 Save $0.00
Sold out

Lug Bolt 14x1.50 Ball Seat 65mm Shank

$3.49
$3.49 - $3.49
$3.49
$2.69
$2.69 - $2.69
$2.69
Out of stock

Ball seat style 14mm x 1.5 threads lug bolts. The shank length is 65mm and the total length is 92mm. The hex size is 17mm. Please refer the followi...

View full details
$3.49
$3.49 - $3.49
$3.49
$2.69
$2.69 - $2.69
$2.69
Sold out
Save $0.50 Save $0.00

Lug Bolt 14x1.50 Ball Seat 28mm Shank

$2.49
$2.49 - $2.49
$2.49
$1.99
$1.99 - $1.99
$1.99

Ball seat style 14mm x 1.50 threads lug bolts. The shank length is 28mm and the total length is 55mm. The hex size is 17mm. These lug bolts fit OEM...

View full details
$2.49
$2.49 - $2.49
$2.49
$1.99
$1.99 - $1.99
$1.99
Save $0.50 Save $0.00
Save $0.60 Save $0.00

Lug Bolt 14x1.50 Ball Seat 55mm Shank

$2.99
$2.99 - $2.99
$2.99
$2.39
$2.39 - $2.39
$2.39

Ball seat style 14mm x 1.5 threads lug bolts. The shank length is 55mm and the total length is 87mm. The hex size is 17mm. Please refer the followi...

View full details
$2.99
$2.99 - $2.99
$2.99
$2.39
$2.39 - $2.39
$2.39
Save $0.60 Save $0.00

Lug Bolt 14x1.50 Ball Seat 60mm Shank

$3.19 - $3.19
$3.19
$3.49
$3.49 - $3.49
$3.49

Ball seat style 14mm x 1.5 threads lug bolts. The shank length is 60mm and the total length is 87mm. The hex size is 17mm. Please refer the followi...

View full details
$3.19 - $3.19
$3.19
$3.49
$3.49 - $3.49
$3.49
Save $0.50 Save $0.00

Lug Bolt 14x1.50 Ball Seat 33mm Shank

$2.49
$2.49 - $2.49
$2.49
$1.99
$1.99 - $1.99
$1.99

Ball seat style 14mm x 1.50 threads lug bolts. The shank length is 33mm and the total length is 59mm. The hex size is 17mm. These lug bolts fit OEM...

View full details
$2.49
$2.49 - $2.49
$2.49
$1.99
$1.99 - $1.99
$1.99
Save $0.50 Save $0.00
Save $0.50 Save $0.00

Lug Bolt 12x1.50 Ball Seat 33mm Shank

$2.49
$2.49 - $2.49
$2.49
$1.99
$1.99 - $1.99
$1.99

Ball seat style 12mm x 1.50 threads lug bolts. The shank length is 33mm and the total length is 58mm. The hex size is 17mm. These lug bolts fit man...

View full details
$2.49
$2.49 - $2.49
$2.49
$1.99
$1.99 - $1.99
$1.99
Save $0.50 Save $0.00
Save $0.60 Save $0.00

Lug Bolt 14x1.50 Ball Seat 51mm Shank

$2.99
$2.99 - $2.99
$2.99
$2.39
$2.39 - $2.39
$2.39

Ball seat style 14mm x 1.50 threads lug bolts. The shank length is 51mm and the total length is 70mm. The hex size is 17mm. These lug bolts fit OEM...

View full details
$2.99
$2.99 - $2.99
$2.99
$2.39
$2.39 - $2.39
$2.39
Save $0.60 Save $0.00
Save $0.50 Save $0.00

Lug Bolt 14mmx1.5 Ball Seat 23mm Shank

$2.49
$2.49 - $2.49
$2.49
$1.99
$1.99 - $1.99
$1.99

Brand new ball seat style 14mm x 1.50 threads lug bolts. The hex size is 17mm. The shank length is 23mm and the overall length is 50mm. Visit our a...

View full details
$2.49
$2.49 - $2.49
$2.49
$1.99
$1.99 - $1.99
$1.99
Save $0.50 Save $0.00
Save $0.50 Save $0.00

Lug Bolt 14x1.50 Ball Seat 31mm Shank

$2.49
$2.49 - $2.49
$2.49
$1.99
$1.99 - $1.99
$1.99

Ball seat style 14mm x 1.50 threads lug bolts. The shank length is 31mm and the total length is 56mm. The hex size is 17mm. These lug bolts fit OEM...

View full details
$2.49
$2.49 - $2.49
$2.49
$1.99
$1.99 - $1.99
$1.99
Save $0.50 Save $0.00
