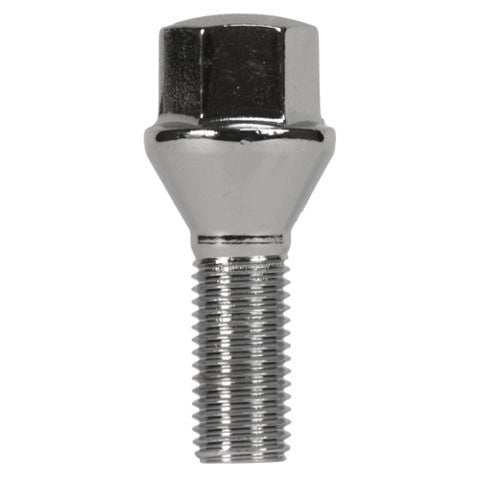

Lug Bolt 14mmx1.50 Conical Seat 30mm Shank
Conical seat style 14mm x 1.50 threads lug bolts. The shank length is 30mm and the total length is 54mm. The hex size is 17mm. These lug bolts fit many Mercedes Benz, Volkswagen, Audi applications. Please refer the following drawing for exact specification and size. Visit our application guide page for any application related information. Contact us for any questions. Price is for each piece.
Size:
Fitment and specs
- Thread size: 14mm x 1.50
- Seat type: conical
- Shank length: 30mm, total length 54mm
- Hex size: 17mm
- Fits many Mercedes Benz, Volkswagen, and Audi applications
- Sold individually
Thread each bolt in by hand until the seat contacts the wheel, then tighten in a star pattern with a torque wrench set to your vehicle's spec. Our torque reference chart covers common applications. Re-torque after 50 to 100 miles of driving.
Common questions
How can I confirm my car takes 14x1.5 rather than 12x1.5?
Measure a bolt you remove: the threaded section is about 14mm across, with 1.5mm between thread crests. The two sizes are not interchangeable, and forcing the wrong one will damage the hub threads.
Can I use these in wheels made for ball seat bolts?
No. Conical and ball seats are not interchangeable. This conical seat needs a matching straight taper machined into the wheel; a rounded pocket calls for a ball seat bolt instead.
