Wheel Adapter 5x4.75 To 8x170 Thickness 2" (Pair)
Fit 8x170 Bolt Pattern Ford Wheels On 5 Lug Chevy

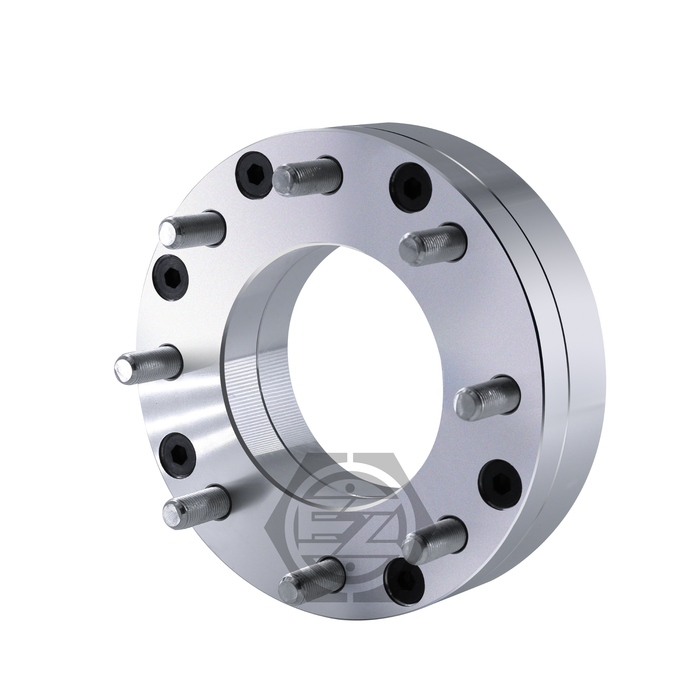

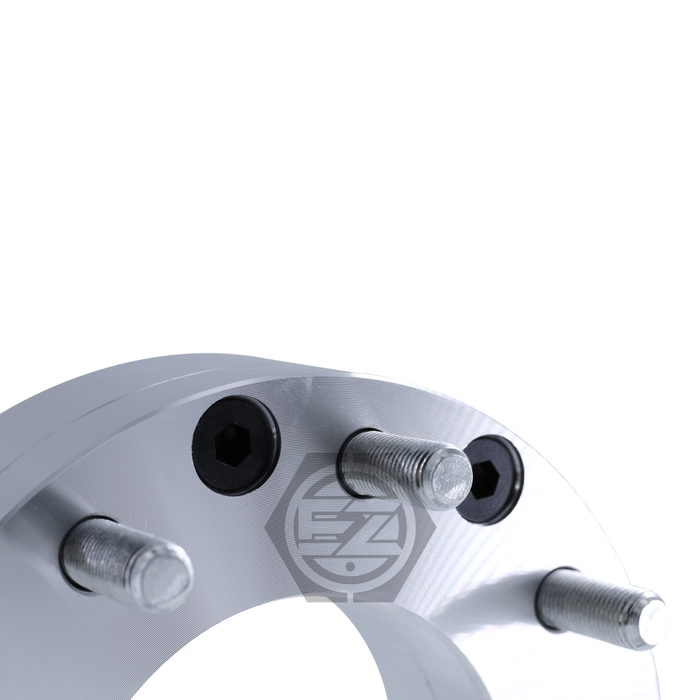

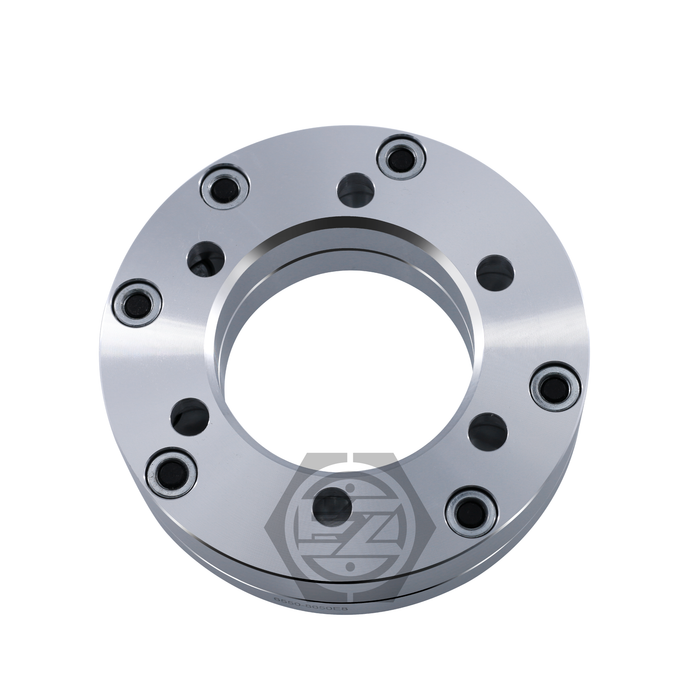

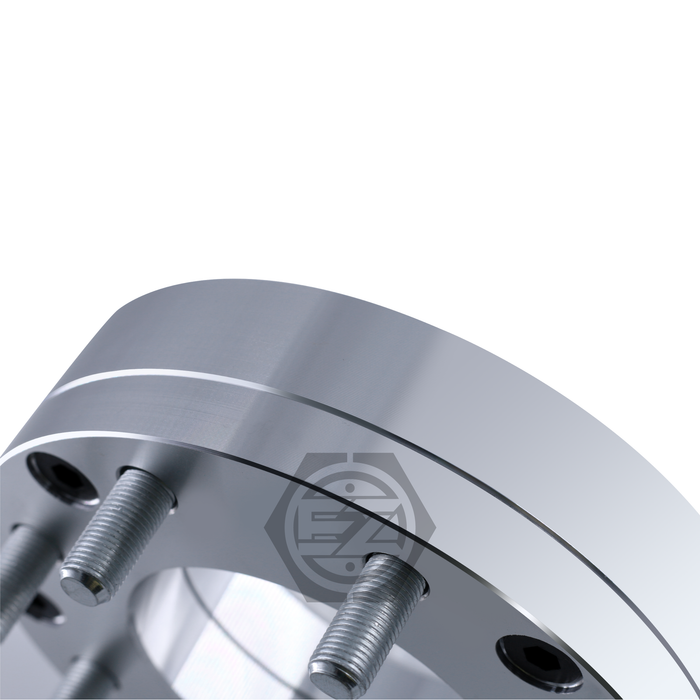

These are used for 5x4.75" (120.7mm) bolt pattern cars to fit 8 Lug 170mm bolt pattern wheels. CNC machined 6061 T6 billet aluminum and 2" in thickness. New wheel studs are included. This is a 2 piece combination adapter in order to solve hole overlapping issue.
Most Popular Applications:
Bolt on 5 Lug Vehicles Below:
Chevy Camaro 67-02
Chevy Corvette
Chevy El Camino
Chevy S10 82-04
Pontiac Trans Am
Buick Regal 78-87
Buick Riviera 66-85
Chevy Caprice 77-90
To Fit 8x170 Bolt Pattern Wheels or Wheels From Ford Super Duty
Our premium quality adapters ensures durability and strength. Price is for a pair (2 adapters).
You can view installation instruction document online How To Install 2 Piece Conversion Adapters
Fitment and specs
- Hub side: 5x4.75" (120.65mm)
- Wheel side: 8x170mm
- Adapter thickness: 2"
- Sold in pairs
This pair bolts to your 5x4.75" (120.65mm) hub and gives you an 8x170mm face for the wheels, spacing them out 2" per side for a wider stance. Seat each adapter squarely against a clean hub and torque the hardware to your vehicle's factory specification; our torque reference chart is there if you need to confirm the value. Re-torque after the first 50 to 100 miles. Trim any studs that poke past the adapter so the wheel can seat flat.
Common questions
Are wheel adapters safe?
They are when installed correctly: flat against the hub, torqued to spec with full thread engagement, and re-torqued after a short drive. Skipping the re-torque is the most common mistake to avoid.
How much wider will my track get?
Each 2" adapter moves the wheel out 2" per side, so your overall track grows by that amount on each end.
