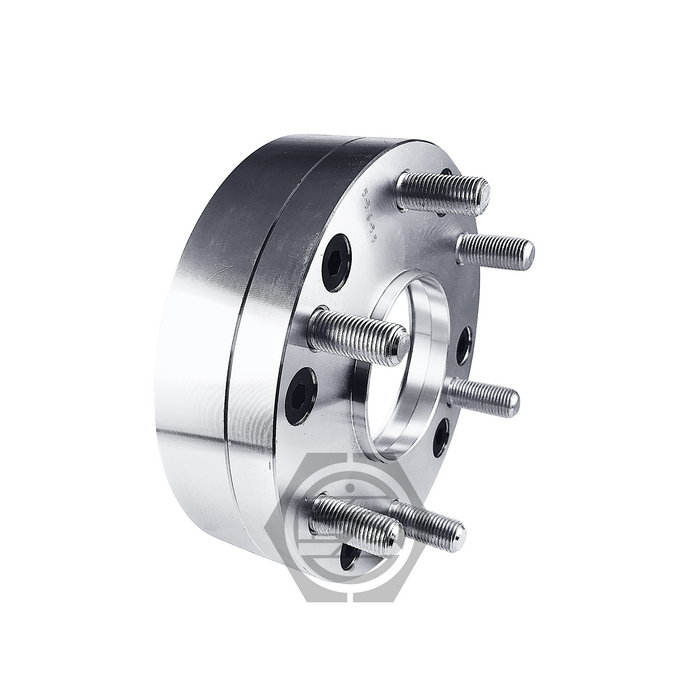

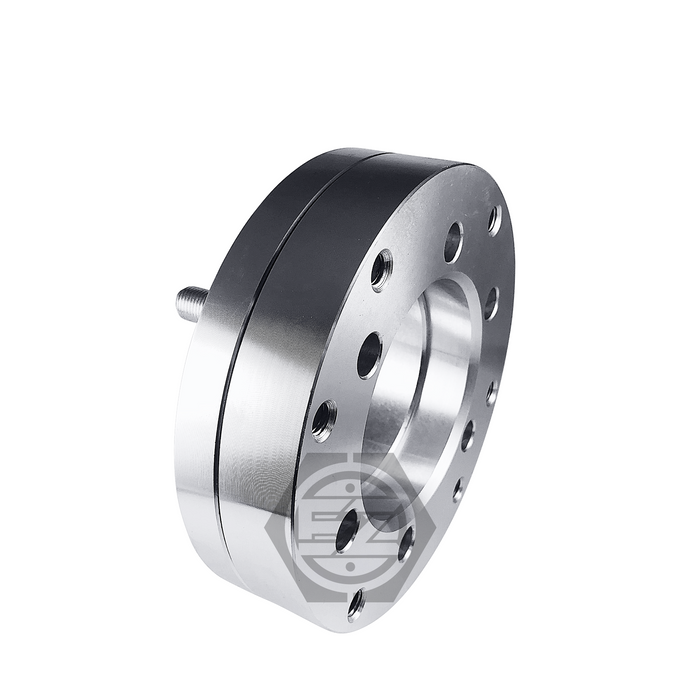

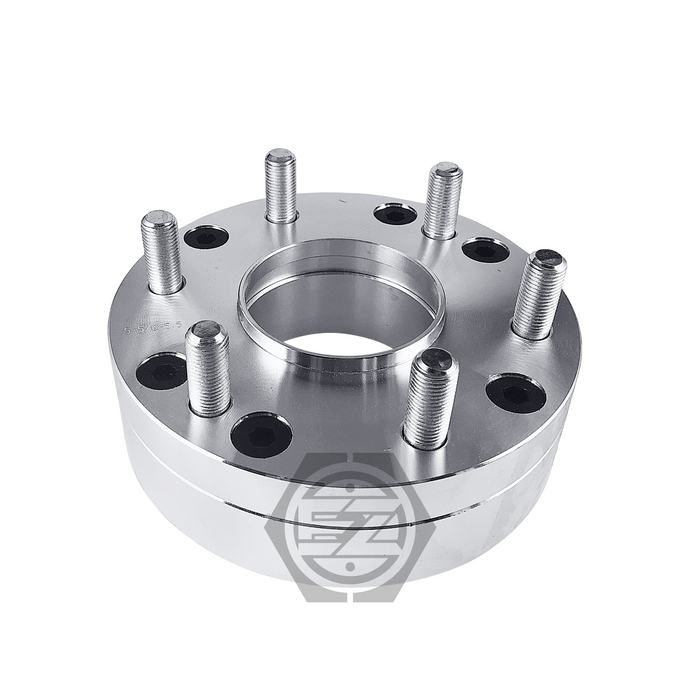

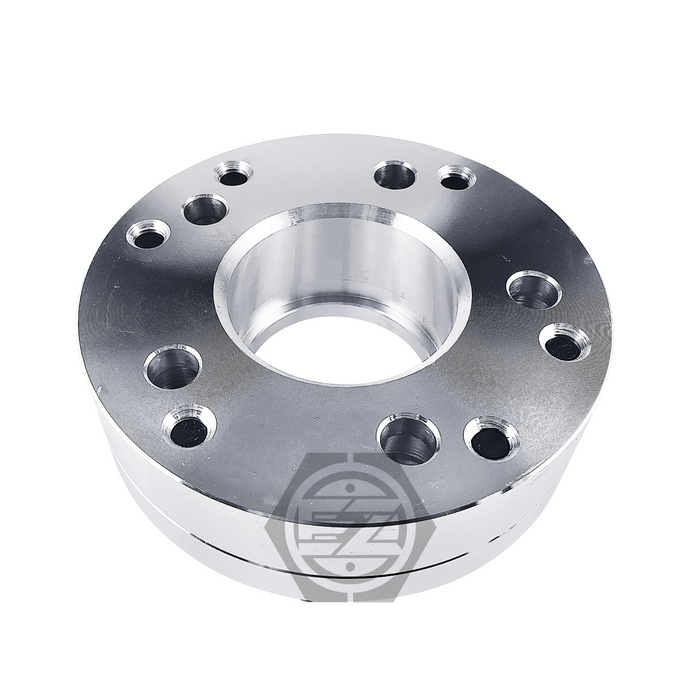

Hub Centric Wheel Adapter 5x4.75 To 6x135 Thickness 2" (Pair)

This type of adapter is used for 5 lug 4.75" (120.7mm) bolt pattern truck to fit 6 lug 135 bolt pattern wheels. CNC machined billet aluminum and 2" in thickness. New wheel studs are included. Our premium quality adapters ensures durability and strength. Price is for a pair (2 adapters).

Hub centric design for a snug fit on both the vehicle and factory wheels. Chance of vibration is eliminated.

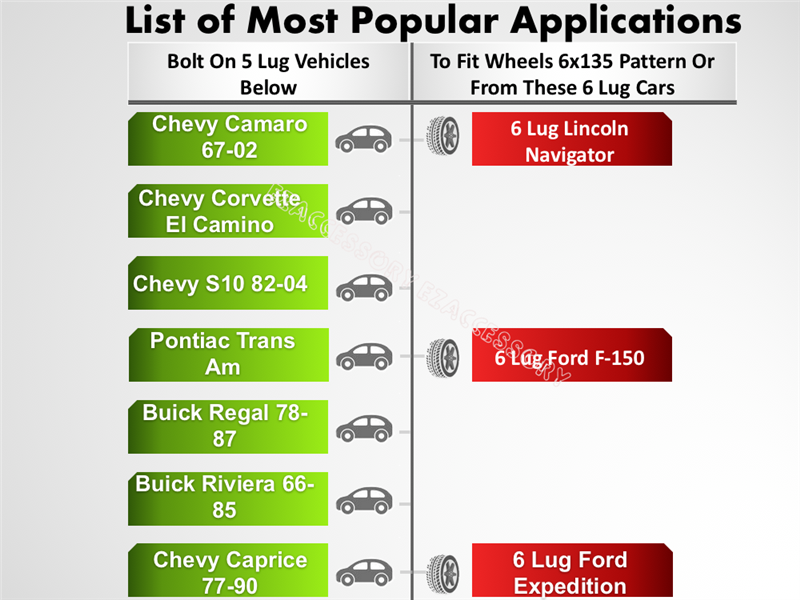

What 5 lug vehicles do these adapters fit?

• Buick: All Mid-Size RWD [64-88], Riviera FWD [79-85]

• Cadillac: Eldorado, Seville [79-85]

• Chevrolet: Camaro [82-on], Iroc Z [85-92], Camaro Z-28 [93-on], Corvette ZR1 [91-on]

• Chevrolet Truck/Van/SUV: Cyclone, Typhoon [All years], S10, S-15 Blazer, Jimmy, Sonoma 2x4 Mid Size [82-on], Sonoma 4x4 Mid Size [83-on]

• Isuzu: Hombre [96]

• Oldsmobile: All Mid-Size RWD [Cutlass, F85, 442, etc] [65-87]

• Pontiac: All Mid Size [Grand Prix, GTO, Lemans, etc] [64-87], Trans Am [67-97], Phoenix [80-85]

What 6 lug wheels do they fit?

• All 6x135mm bolt pattern wheels, factory and after market

• All factory wheels from 6 lug Ford F150, Expedition, Lincoln Navigator

Examples of applications:

• Putting 6 lug F150 wheels on 5 lug Chevy Corvette axle

• Putting 6 lug Navigator wheels on 5 lug Chevy S10 axle



Features:

• 2-piece conversion type

• Hub centric to hub and wheel centric to factory wheels

• True aircraft quality 6061 T6 billet

• CNC precision machined

• Pressed-in through hardened steel studs

You can view installation instruction document online How To Install 2 Piece Conversion Adapters

Fitment and specs

• Bolts to a 5x4.75" (120.6mm) hub
• Runs 6x135mm wheels after install
• 2 inch thickness for extra track width
• Hub centric fit for a balanced, centered wheel
• Ships as a pair, free US shipping

These take your 5x4.75" (120.6mm) hub and turn it into a 6x135mm mounting face so six lug wheels bolt on cleanly. Torque both adapter and wheel hardware to your vehicle's factory specification, using our torque reference chart as your guide, then re-torque after 50 to 100 miles. Shorten any factory studs that poke past the adapter face so the wheel can seat flush.

Common questions

Are wheel adapters safe?
Installed right they are: flat against a clean hub, torqued to spec, re-torqued after a short drive, and with full stud and thread engagement.

Will my current wheels fit these?
Only if they are 6x135mm, which is the outer pattern here. Fitment applies to the vehicles listed in the description above.
