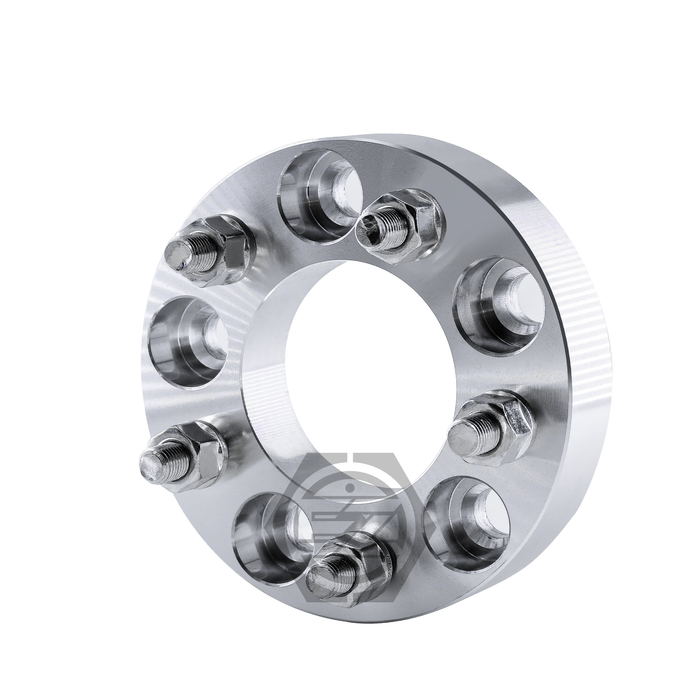

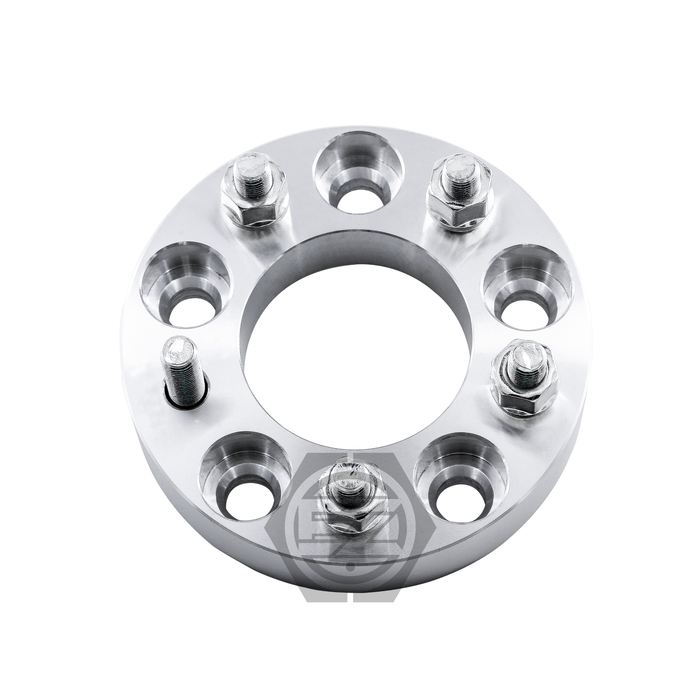

Wheel Adapter 5x120 To 5x150 (Pair)
| Converts from (hub) | 5x120mm |
|---|---|
| Converts to (wheel) | 5x150mm |
| Center bore | 74.1mm |
| Stud thread | 14x1.5 |
| Thickness | 1" |
| Material | 6061-T6 billet aluminum |
| Includes | Wheel studs included |
| Sold as | Pair (2 pieces) |
Put Toyota Tundra (2007-2021) Wheels On An Acura MDX (2007-2013)
These are used for 5x120mm bolt pattern cars to fit 5x150mm inch bolt pattern wheels. CNC machined 6061 T6 billet aluminum. New wheel studs are included. Center bore is 74.1mm; studs thread size 14x1.5mm.
Bolts to these 5x120mm hubs (US models):
- Acura: Integra Type S (24-26), MDX (07-13, 17-20, 22-24), RL (05-12), RLX (14-20), TL (09-14), TLX (21-25)
- BMW: 1 Series (08-13), 3 Series (92-12, 17-18, not the 92-93 E30 convertible, which is 4x100), 4 Series (14-20), 5 Series (75-16), 6 Series (77-89, 04-10, 12-17), 7 Series (78-15), 8 Series (91-97), X3 (04-10), X5 (00-06)
- Cadillac: ATS-V (16-19), CT4-V Blackwing (22-25), CT5 (20-26), CT6 (16-20), CTS (08-19), CTS-V (09-19), XT4 (19-25), XTS (13-19)
- Chevrolet: Camaro (10-24), Corvette (20-22), Equinox (10-17), Impala (14-20, not the 14-16 Impala Limited), Malibu (13-15), SS (14-17)
- Honda: Civic Type R (17-21, 23-26), Odyssey (05-26), Passport (19-26), Pilot (09-26), Ridgeline (06-14, 17-26)
- Land Rover: Discovery (99-04), LR3 (05-09), Range Rover (96-02)
- Pontiac: G8 (08-09)
- Saab: 9-5 (10-11)
Hub-side lug nuts or lug bolts are bought separately, in your vehicle's thread. Where the hub uses lug bolts, confirm full thread engagement, fully recessed heads and flush seating.
Runs 5x150mm wheels, including factory wheels from these vehicles (US models):
- Toyota: Land Cruiser (98-21), Sequoia (08-22), Tundra (07-21)
Mount the wheels on the adapter's 14x1.5 studs with lug nuts that match your wheels' seat.
**If hub studs protrude outside the adapter and prevent the wheels to sit flush on the adapter plates, it is required to shorten the factory studs.
Fitment and specs
- Adapter pair for wheel conversion
- Hub side pattern: 5x120mm
- Wheel side pattern: 5x150mm
- Adapts a 5x120 hub to run 5x150 wheels
- Free US shipping
This pair bolts onto your 5x120mm hub so you can mount 5x150mm wheels. Make sure each adapter sits flush on a clean hub with full thread engagement, torque to your vehicle's factory specification per our torque reference chart, and re-torque after 50 to 100 miles. Trim any factory studs that reach past the adapter face so the wheel seats flat.
Common questions
Are wheel adapters safe?
Yes. Seated flat against a clean hub, torqued to spec with full stud and thread engagement, and re-torqued after a short drive, they hold up well.
What should I check before buying?
Confirm your hub is 5x120mm and that your application appears in the description above.
