Wheel Adapter 5x4.25 To 5x120 (Pair)
| Converts from (hub) | 5x4.25" (5x108mm) |
|---|---|
| Converts to (wheel) | 5x120mm |
| Center bore | 73mm |
| Stud thread | 14x1.5 |
| Thickness | 1" |
| Material | 6061-T6 billet aluminum |
| Includes | Wheel studs included |
| Sold as | Pair (2 pieces) |
Put BMW 3 Series (1994-2011) Wheels On A Ford Taurus (1986-2007)

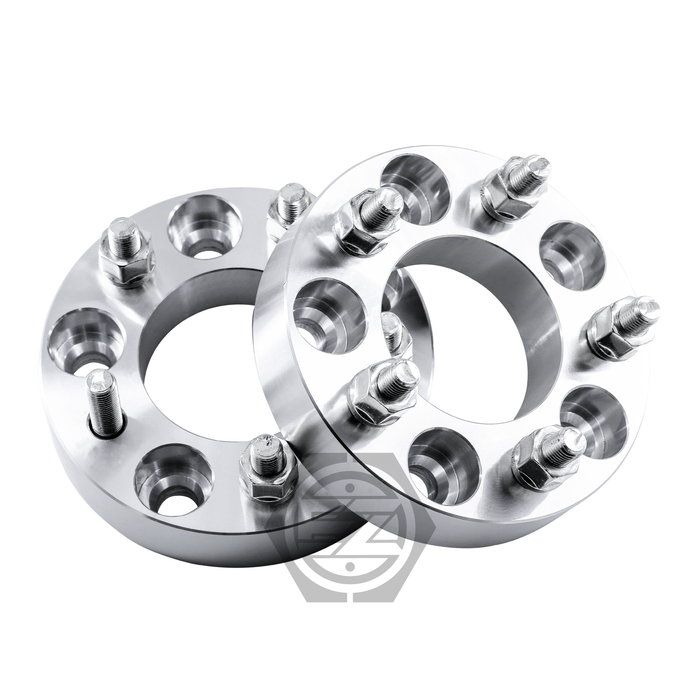

These are used for 5x4.25" (108mm) bolt pattern cars to fit 5x120mm bolt pattern wheels. CNC machined 6061 T6 billet aluminum. New wheel studs are included. Center bore is 73mm; studs thread size 14x1.5.
Bolts to these 5x4.25" (5x108mm) hubs (US models):
- Ford: C-Max (13-18), Escape (13-22), Focus (12-18), Fusion (13-20), Taurus (86-07), Thunderbird (89-97, 02-05), Windstar (95-03)
Hub-side lug nuts or lug bolts are bought separately, in your vehicle's thread. Where the hub uses lug bolts, confirm full thread engagement, fully recessed heads and flush seating.
Runs 5x120mm wheels, including factory wheels from these vehicles (US models):
- Acura: Integra Type S (24-26), MDX (07-13, 17-20, 22-24), RL (05-12), RLX (14-20), TL (09-14), TLX (21-25)
- BMW: 1 Series (08-13), 3 Series (92-12, 17-18, not the 92-93 E30 convertible, which is 4x100), 4 Series (14-20), 5 Series (75-16), 6 Series (77-89, 04-10, 12-17), 7 Series (78-15), 8 Series (91-97), X3 (04-10), X5 (00-06)
- Cadillac: ATS-V (16-19), CT4-V Blackwing (22-25), CT5 (20-26), CT6 (16-20), CTS (08-19), CTS-V (09-19), XT4 (19-25), XTS (13-19)
- Chevrolet: Camaro (10-24), Corvette (20-22), Equinox (10-17), Impala (14-20, not the 14-16 Impala Limited), Malibu (13-15), SS (14-17)
- Honda: Civic Type R (17-21, 23-26), Odyssey (05-26), Passport (19-26), Pilot (09-26), Ridgeline (06-14, 17-26)
- Land Rover: Discovery (99-04), LR3 (05-09), Range Rover (96-02)
- Pontiac: G8 (08-09)
- Saab: 9-5 (10-11)
Mount the wheels on the adapter's 14x1.5 studs with lug nuts that match your wheels' seat.
**If hub studs protrude outside the adapter and prevent the wheels to sit flush on the adapter plates, it is required to shorten the factory studs.
Fitment and specs
- Hub side: 5x4.25" bolt pattern, also written 5x108mm
- Wheel side: 5x120mm bolt pattern
- Changes your bolt pattern from 5x108 to 5x120
- Supplied as a pair
Mount these against your 5x4.25" (5x108mm) hubs and they let you run 5x120mm wheels. Torque the mounting hardware to your vehicle's factory specification, referring to the torque reference chart, and re-torque after the first 50 to 100 miles of driving. Any factory studs that stick past the adapter face should be trimmed so the wheel can sit flush. Free US shipping.
Common questions
Are wheel adapters safe?
They are when installed correctly: flat against a clean hub, torqued to spec with full thread engagement, and re-torqued after the first 50 to 100 miles.
How do I confirm my hub matches these?
Check that the applications shown in the description above cover your vehicle, and that your hub reads a 5x4.25" (5x108mm) pattern before ordering.
