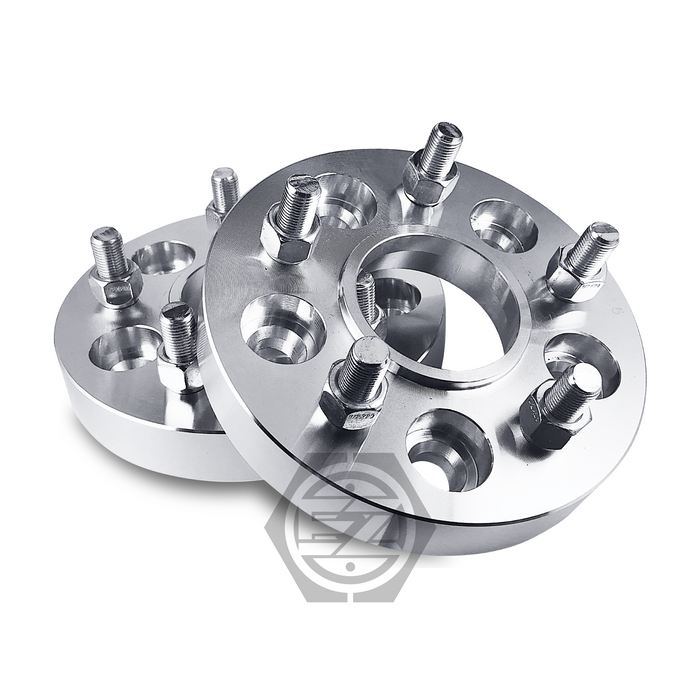

5x4.5" Hub Centric Wheel Spacers | Bolt-On, 66.1mm Bore (Pair)
| Bolt pattern(s) | 5x4.5" (5x114.3mm) |
|---|---|
| Center bore | 66.1mm |
| Stud thread | 12x1.25 |
| Thickness options | 1", 1.25" |
| Material | 6061-T6 billet aluminum |
| Centering | Hub centric |
| Includes | Wheel studs pre-installed |
| Sold as | Pair (2 pieces) |
These hub centric adapters are used for 5 lug 4.5" (114.3mm) bolt pattern Altima (not the 1993-2001 models), Maxima (not the 1984-1988 models), 240SX (not the 1989-1994 models or the 1995-1998 base model), 300ZX (not the 1984-1985 non-turbo models), 350Z, G35, I30, J30, M45, Q45; also Nissan 370Z (09-20), Ariya (23-26), Juke (11-17), Kicks (25-26, redesigned model only; not Kicks Play), Leaf (11-26), Murano (03-26), US NV200 (13-21), Pathfinder (13-26), Quest (93-02, 04-09, 11-17), Rogue (08-26), Rogue Select (14-15), Rogue Sport (17-22), Sentra (13-26), Sentra SE-R (07-12); Infiniti EX35 (08-12), EX37 (13), FX35 (03-12), FX37 (13), FX45 (03-08), FX50 (09-13), G25 (11-12), G37 (08-14), I35 (02-04), JX35 (13), M35 (06-10), M37 (11-13), M56 (11-13), Q40 (15), Q50 (14-22), Q60 (14-15, 17-22), Q70 (14-19), QX50 (14-17, 19-24), QX55 (22-23), QX60 (14-20, 22-23), QX70 (14-17); and Chevrolet City Express (15-18) with 66.1mm hub to fit 5 lug 4.5" (114.3mm) factory wheels (66.1mm bore). CNC machined 6061 T6 billet aluminum. New open end lug nuts and 12x1.25 thread size pre-installed wheel studs are included.
Our premium quality adapters ensures durability and strength. Price is for a pair (2 adapters).
**If the hub studs protrude outside the adapter and prevent the wheels to sit flush on the adapter plates, it is required to shorten the factory studs. It happens most often on 1" thick adapters.
Fitment and specs
- Bolt pattern: 5x4.5" (5x114.3mm), vehicle side and wheel side
- Hub centric with a 66.1mm bore for Nissan and Infiniti factory wheels
- Fits Altima (not the 1993-2001 models), Maxima (not the 1984-1988 models), 240SX (not the 1989-1994 models or the 1995-1998 base model), 300ZX (not the 1984-1985 non-turbo models), 350Z, G35, I30, J30, M45, and Q45, plus the other Nissan, Infiniti and Chevrolet City Express models listed in the description above
- CNC machined 6061 T6 billet aluminum
- 12x1.25 thread wheel studs pre-installed, open end lug nuts included
- Sold as a pair, with free US shipping
Since the bolt pattern is the same on both sides, these work as spacers: they bolt to your 5x4.5" (5x114.3mm) hubs and push each wheel outward for added track width. Torque the adapter nuts and lug nuts to spec using our torque reference chart, then re-torque after the first 50 to 100 miles. If the factory hub studs protrude past the adapter face, shorten them so the wheel sits flush.
Common questions
Are wheel adapters safe?
Yes, when installed correctly: seated flat against the hub, torqued to spec, re-torqued after the first 50 to 100 miles, and with full thread engagement on every stud.
Do these change my bolt pattern?
No. Both sides are 5x4.5" (5x114.3mm), so your factory wheels bolt right back on. The 66.1mm bore keeps the hub centric fit, and the only change is added track width.
