Hub Centric Ring O.D. 67mm I.D. 54.06mm
|

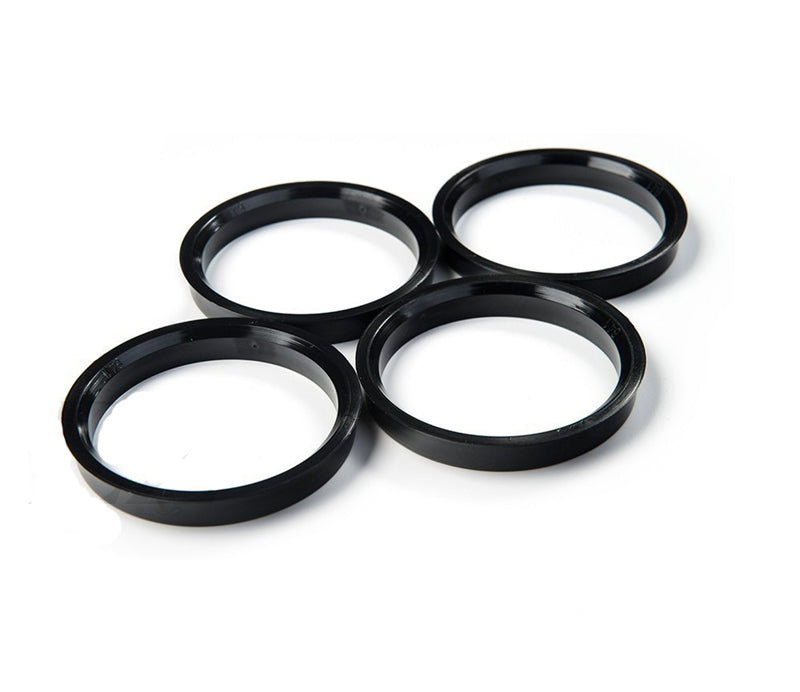

One set of 4 hub centric rings with O.D. (outer diameter) of 67mm and I.D. (inner diameter) of 54.06mm. These rings are made of high quality polycarbon. To determine proper fitment you need to do a couple of things. First you need to determine the center bore size, i.e. O.D. of the aftermarket wheel. Contact your wheel dealer if needed. Then find out the vehicle hub size, i.e. I.D. When these match our hub ring description, then they are the right size. These hub rings will fit the following cars and trucks
Size
|
Fitment and specs
- Outer diameter (O.D.): 67mm, fits wheels with a 67mm center bore
- Inner diameter (I.D.): 54.06mm, fits a vehicle hub measuring 54.06mm
- Set of 4, one ring per wheel
- High quality polycarbon construction
Press each ring flush into the center bore on the hub side of the wheel, then mount the wheel normally. The ring takes up the space between the 54.06mm hub and the 67mm wheel bore so the wheel centers precisely and the lug holes line up without shuffling the wheel around. No tools or adhesive are required.
Common questions
How do I measure for the right hub ring?
Check two numbers, with calipers or from the manufacturer specs: the center bore machined into the back of your wheel, which should be 67mm, and the diameter of the raised center lip on your hub, which should be 54.06mm. When both match this listing, it is the correct ring.
What is the benefit of running hub centric rings?
They center the wheel on the hub itself rather than leaving it to settle as the lugs are tightened. That precise centering makes installation quicker and helps keep the ride smooth and free of vibration at speed.
