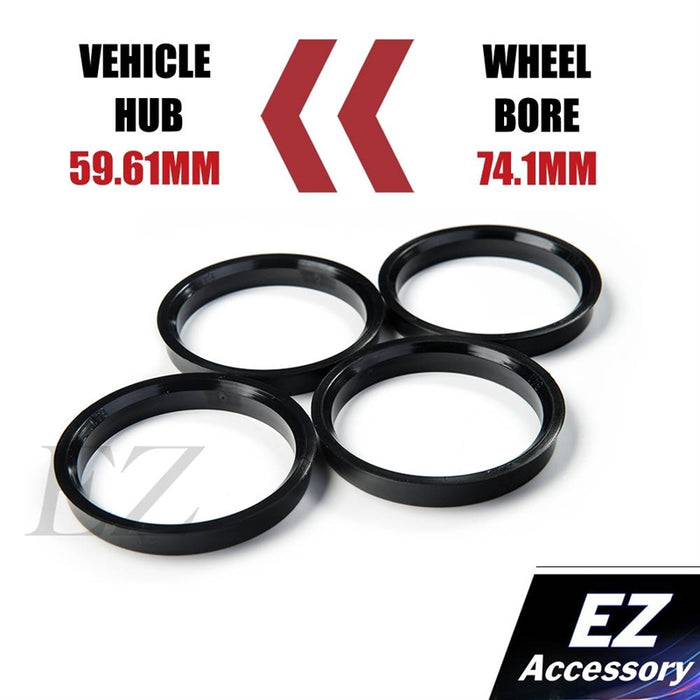

Hub Centric Ring O.D. 74mm I.D. 59.61mm Mazda Mercury Geo
|
One set of 4 hub centric rings with O.D. (outer diameter) of 74.10mm and I.D. (inner diameter) of 59.61mm. These rings are made of high quality poly carbon. To determine proper fitment you need to do a couple of things. First you need to determine the center bore size, i.e. O.D. of the aftermarket wheel. Contact your wheel dealer if needed. Then find out the vehicle hub size, i.e. I.D. When these match our hub ring description, then they are the right size. These hub rings will fit the following cars and trucks
Size:
|
Fitment and specs
- Outer diameter (O.D.): 74.10mm, for wheels with a 74mm center bore
- Inner diameter (I.D.): 59.61mm, for a 59.61mm vehicle hub
- Material: high quality poly carbon
- Set of 4 rings, one per wheel
- Listed applications: Geo Metro; Mazda GLC, 323, 626, MX-6, GSL-SE, and RX-7 83-88; Mercury Tracer 86-90, Capri, and XR-2
Press a ring into the back side of each wheel's center bore until it seats flush and even. When you hang the wheel, the ring locates it dead center on the 59.61mm hub, which makes the lugs easier to start and helps the wheel run true. The rings stay in the wheels once installed.
Common questions
Will the rings stay put once installed?
Yes. They press in snug against the 74mm bore and are held captive between the wheel and hub whenever the wheel is mounted, so they ride in place mile after mile.
Do I need hub rings if my wheel bore already matches the hub?
No. A wheel bored to exactly 59.61mm centers on the hub by itself. These rings are for aftermarket wheels with the larger 74mm bore, which is where the ring provides the precise centered fit.
