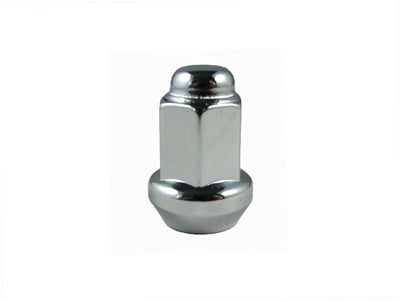

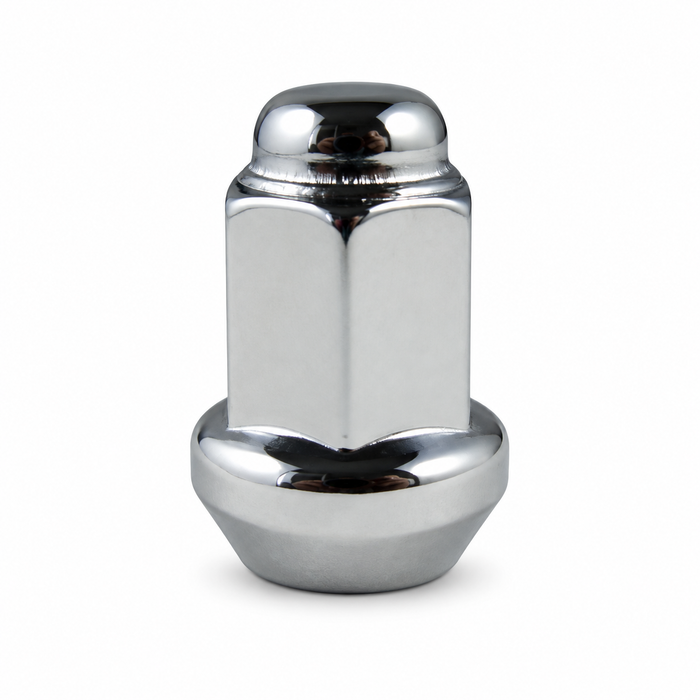

ATV Bulge 3/8" x 24 Thread
ATV Bulge 3/8" x 24 threads lug nut. 14mm hex. 1.1" Tall. Chrome finish. Please refer to the following drawing for exact specification and size. Visit our application guide page for fitment information. Price is for each piece.
Fitment and specs
- Thread size: 3/8" x 24 SAE
- Style: ATV bulge lug nut
- Hex size: 14mm
- Overall height: 1.1 inches
- Finish: chrome
- Priced and sold per piece
Start each nut by hand for several turns so the 3/8" x 24 thread engages straight, then tighten with a 14mm socket in a crisscross pattern. Torque to your machine's spec using our torque reference chart, and re-torque after 50 to 100 miles.
Common questions
Is 3/8" x 24 the same as 10x1.25?
No. 3/8" x 24 is an SAE thread and 10x1.25 is metric. They are close in size but not interchangeable, so confirm your stud thread before ordering by checking your owner's manual or matching against a nut you removed.
What is a bulge seat?
A bulge nut has a rounded, extended seat that centers into tapered lug holes, which is a common design on ATV wheels. If your wheel has flat seats with no taper, choose a flat-seat ATV nut instead.
