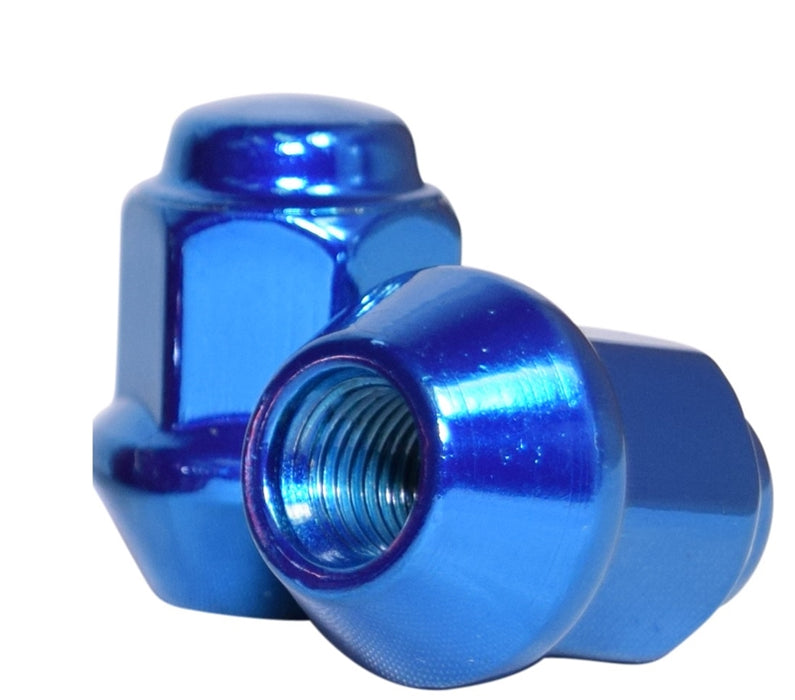

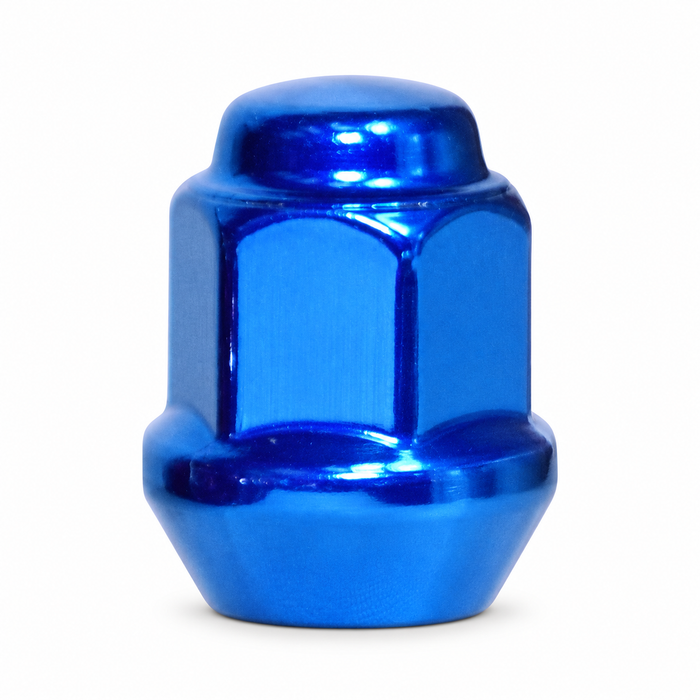

Blue ATV Bulge 3/8" x 24 Thread
ATV Bulge 3/8" x 24 threads lug nut. 17mm hex. 1.1" Tall. Blue finish. Please refer to the following drawing for exact specification and size. Visit our application guide page for fitment information. Price is for each piece.
Fitment and specs
- Thread size: 3/8" x 24 SAE
- Style: ATV bulge lug nut
- Hex size: 17mm
- Overall height: 1.1 inches
- Finish: blue
- Priced and sold per piece
Start every nut by hand so the 3/8" x 24 thread engages straight, then bring it down with a 17mm socket in a crisscross pattern. Torque to your machine's spec using our torque reference chart, and re-torque after 50 to 100 miles to confirm the seats have settled in.
Common questions
How do I confirm my studs are 3/8" x 24?
Check your owner's manual or match a nut you removed against this thread. 3/8" x 24 is an SAE size and is not interchangeable with metric 10x1.25 studs, even though the two look similar at a glance.
How do I protect the blue finish during install?
Use a snug six-point 17mm socket and start each nut by hand. A properly fitting socket grips the hex squarely and helps keep the coating clean while you bring the nut to torque.
