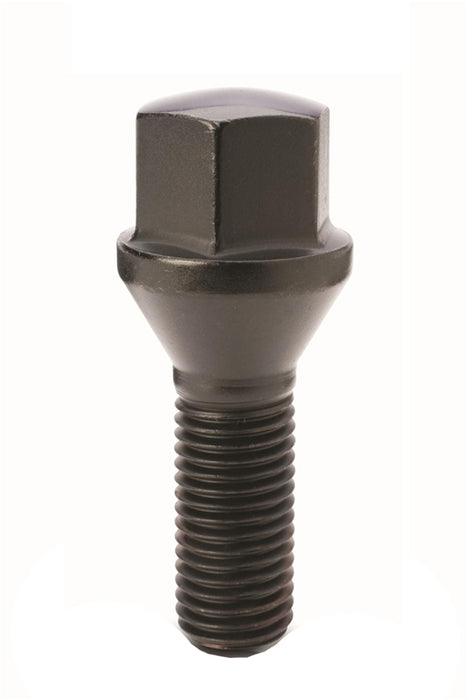

Black Lug Bolt 16mmx1.5 Conical Seat 30mm Shank
SKU 9530BK
Save $2.00
Original price
$5.49
Original price
$5.49
-
Original price
$5.49
Original price
$5.49
Current price
$3.49
$3.49
-
$3.49
Current price
$3.49
Conical seat style 16mm x 1.5 threads lug bolts. The shank length is 30mm and the total length is 57mm. The hex size is 19mm. They are used mount aftermarket wheels on Ram ProMaster 1500 2500 3500 2014-2019 . Black finish. Price is for each piece.
Fitment and specs
- Thread size: 16mm x 1.5, conical seat
- Shank length: 30mm, total length 57mm
- Hex size: 19mm
- Black finish
- For mounting aftermarket wheels on Ram ProMaster 1500, 2500, and 3500, 2014 to 2019
- Priced per piece
Hold the wheel against the hub, thread the first bolt in by hand at the top to take the weight, then start the rest before tightening in a star pattern to your vehicle's spec. Check our torque reference chart for values and re-torque after the first 50 to 100 miles.
Common questions
Do my wheels need a specific seat for these bolts?
Yes. These are conical seat bolts, and conical, ball, and mag seats are not interchangeable. The wheel must have a matching conical (tapered) seat to center and clamp properly.
How many should I order?
They are priced per piece, so order one for every bolt position on the wheels you are servicing. Fitment covers aftermarket wheels on 2014 to 2019 Ram ProMaster 1500, 2500, and 3500 with the 16x1.5 thread.
