Lug Bolt 12mm x 1.25 Conical Seat 24mm Shank
SKU 9624
Save $0.50
Original price
$2.49
Original price
$2.49
-
Original price
$2.49
Original price
$2.49
Current price
$1.99
$1.99
-
$1.99
Current price
$1.99

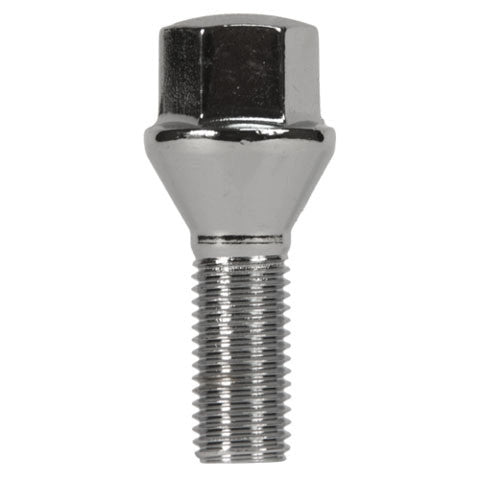

Conical seat style 12mm x 1.25 thread lug bolts. The shank length is 24mm and the total length is 43mm. Most popular for Jeep Cherokee, Renegade; Alfa Romeo, Fiat, etc. The hex size is 17mm. Price is for each piece.
Fitment and specs
- Thread size: 12mm x 1.25
- Seat type: conical (tapered)
- Shank length: 24mm; total length: 43mm
- Hex size: 17mm
- Popular on Jeep Cherokee and Renegade, plus Alfa Romeo and Fiat models
- Sold individually, priced per bolt
Seat the wheel flat on the hub, start all bolts by hand, and snug them in a star pattern before final tightening. Torque to your vehicle's spec using our torque reference chart, then re-torque after 50 to 100 miles on a fresh install.
Common questions
My wheels use ball seat bolts. Will these fit?
No. Conical, ball, and mag seats are not interchangeable. These have a tapered seat that must match a tapered pocket in the wheel; the wrong seat type will not center the wheel or hold torque reliably.
Do I need the 24mm shank or a longer one?
Match your factory hardware. Remove one original bolt and measure its shank; if it is about 24mm, this is your length. Too long can bottom out before clamping, too short cuts down thread engagement.
