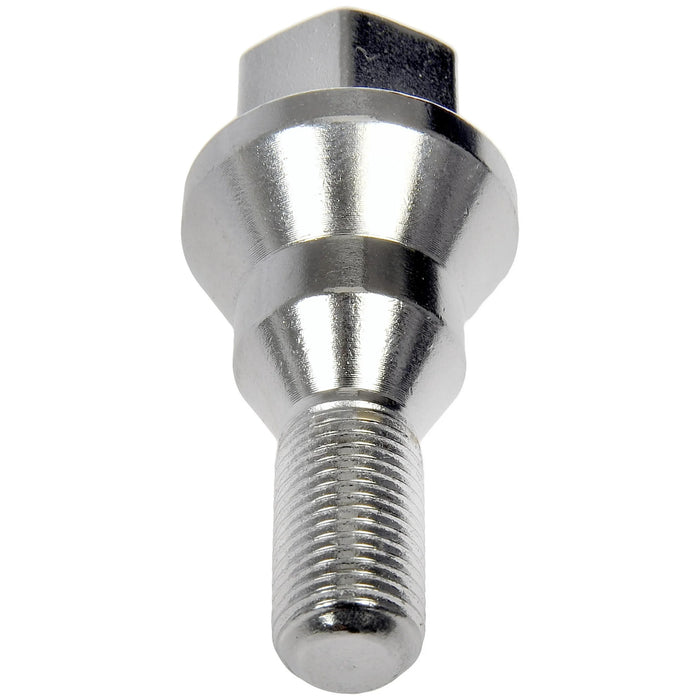

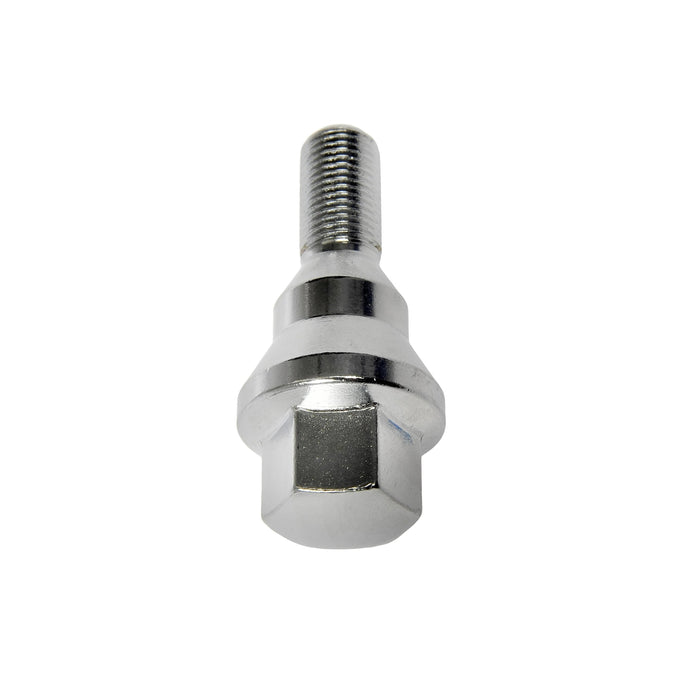

OEM Conical Lug Bolts 12x1.25 for Dodge Dart Chrysler 200
Special conical lug bolts 12x1.25 with 19mm hex and 23mm shank. Sold in each piece.
Fits the factory wheels for the following vehicle models
Chrysler 200C, 200 LX, 200S
Dodge Dart 2013-2016
Fitment and specs
- Thread size: 12x1.25
- Seat type: conical (tapered)
- Hex size: 19mm
- Shank length: 23mm
- Sold individually, priced per bolt
- OEM fit for factory wheels on Chrysler 200C, 200 LX, 200S and 2013-2016 Dodge Dart
Start every bolt by hand for several turns so you never cross-thread the hub. Snug them in a star pattern, tighten to the value in our torque reference chart, and re-torque after 50 to 100 miles of driving.
Common questions
Can I use these on wheels with ball or mag seats?
No. Seat types are not interchangeable. These bolts have a conical seat, so the wheel needs matching tapered seats for the bolt to clamp flat and hold torque. Ball seat and mag seat wheels each require their own hardware.
Why does the 23mm shank length matter?
The shank is the smooth section between the seat and the threads, and it is sized to the factory wheels listed above. If you are replacing a damaged bolt, match it against the old one: 12x1.25 thread, 19mm hex, 23mm shank.
