Long Cragar Style Mag Lug Nut 7/16"-20

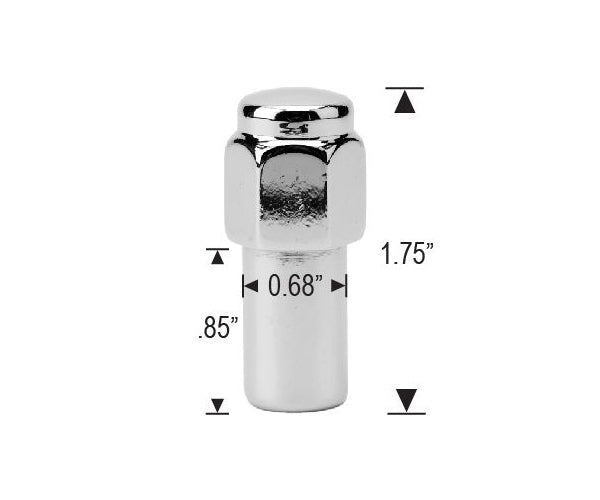

7/16" Cragar style standard mag long lug nuts including Cragar style washers that fit Cragar SS wheels, etc. These lug nuts fit other custom replacement cast or forged aluminum wheels that are between 11/16" and 7/8" thick at the stud hole. The shank length is 0.85" and the total length is 1.75". Please refer the following drawing for exact specification and size. Visit our application guide page for any application related information. Contact us for any questions. Sold in each piece.

Fitment and specs

• Thread size: 7/16"-20
• Long Cragar style mag lug nut with Cragar style washer included
• Shank length: 0.85"; total length: 1.75"
• Fits Cragar SS wheels and other cast or forged aluminum wheels 11/16" to 7/8" thick at the stud hole
• Sold individually

Place the washer flat against the wheel face, start every nut by hand to protect the threads, then tighten in a star pattern to the spec in our torque reference chart. Re-torque after 50 to 100 miles, since washer-seat hardware can settle after the first heat cycles.

Common questions

Are mag style and conical seat lug nuts interchangeable?
No. These clamp through a flat washer with a straight shank, while conical seat nuts center in a tapered hole. Using the wrong seat type means the wheel is not properly clamped, so match the hardware to how your wheel is machined.

How many should I order?
They are sold individually, so order one per wheel stud on your vehicle. Ordering one or two spares is a practical way to cover a lost nut or washer down the road.
