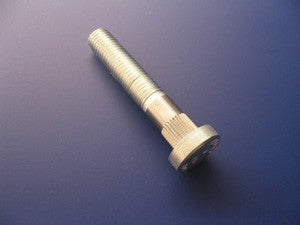

Wheel Adapter Studs 7/16" Extended Length
Wheel adapter studs 7/16" thread size with 2.6" overall length (L1). Knurl diameter (D1) is 0.55". They are not compatible with our 2-piece conversion adapter studs.
Fitment and specs
- Thread size: 7/16"
- Overall length (L1): 2.6", extended length
- Knurl diameter (D1): 0.55"
- Replacement stud for wheel adapters
- Not compatible with our 2-piece conversion adapter studs
These are knurled press-in studs. Support the adapter plate, press the old stud out, and press the replacement in straight until the knurl is fully seated. Once the wheel is remounted, tighten the lug nuts to spec with our torque reference chart and re-torque after 50 to 100 miles.
Common questions
How do I confirm these match the studs in my adapter?
Measure the old stud end to end and across the knurled section. These run 7/16" thread, 2.6" overall length, and a 0.55" knurl diameter, so all three numbers should match what came out of your adapter.
Will they work in a 2-piece conversion adapter?
No. Our 2-piece conversion adapters use a different stud, and the two are not interchangeable. Use the studs listed specifically for the 2-piece adapter instead.
