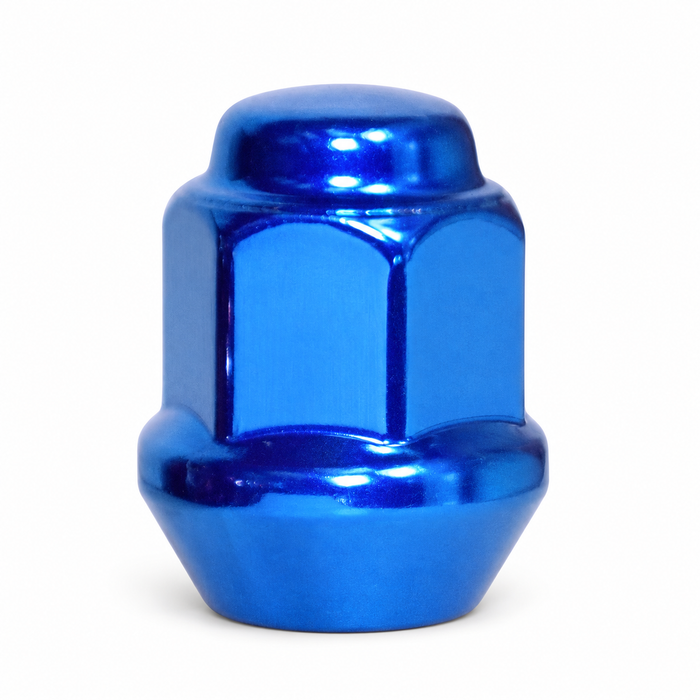

Blue ATV Bulge 10x1.25 Thread
Fitment and specs
- Thread size: 10x1.25 metric
- Style: ATV bulge lug nut
- Hex size: 17mm
- Overall height: 1.2 inches
- Finish: blue
- Priced and sold per piece
Start each nut by hand for several turns so the 10x1.25 thread engages cleanly, then tighten with a 17mm socket in a crisscross pattern. Torque to your machine's spec using our torque reference chart as a guide, and re-torque after 50 to 100 miles of riding.
Common questions
How many should I order?
These are sold individually, so count the studs on one hub and multiply by the number of wheels you are servicing. Many riders replace the full set at once so the seating and blue finish stay consistent at every corner.
What does the bulge seat mean?
A bulge nut has a rounded, extended seat that centers into the tapered lug holes found on many ATV wheels. If your wheel has flat lug seats with no taper, use a flat-seat ATV nut instead, since the two styles are not interchangeable.
