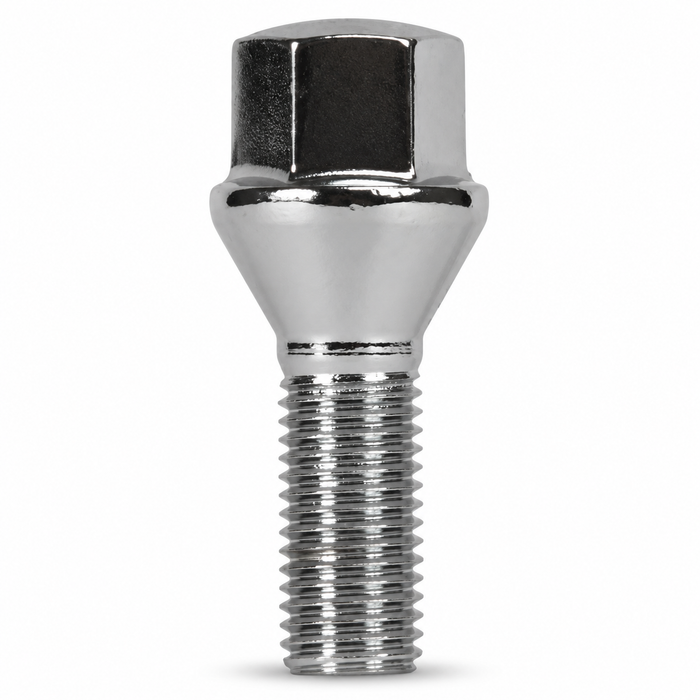

Lug Bolt 12mm x 1.25 Conical Seat 40mm Shank
| Thread size | 12x1.25 |
|---|---|
| Style / seat | Conical Seat |
| Hex size | 17mm |
| Overall length | 65mm |
| Shank length | 40mm |
| Sold as | Each (single piece) |
Fitment and specs
- Thread size: 12mm x 1.25
- Seat type: conical
- Shank length: 40mm, total length: 65mm
- Hex size: 17mm
- Popular for the Jeep Cherokee (2014-2023), Jeep Renegade (2015-2023) and Fiat 500 (2012-2019, 4x98 bolt pattern)
- Priced and sold per piece
Thread each bolt in by hand for the first few turns, then tighten in a star pattern and finish at your vehicle's spec with a torque wrench. The torque reference chart is a quick way to look up common values. Re-torque after 50 to 100 miles of driving.
Common questions
Will these work on my Jeep Cherokee or Renegade?
They are a popular choice for the 2014-2023 Cherokee and 2015-2023 Renegade, which use 12x1.25 lug bolts; the 1984-2001 Cherokee uses 1/2" studs and nuts instead, so these do not fit it. Verify your vehicle uses a 12x1.25 thread with a conical seat, and compare the 40mm shank against the bolts you are removing before ordering.
What if the shank length differs from my current bolts?
Stick with the length your setup needs. A shank that is too short reduces thread engagement in the hub, and one that is too long can bottom out before the wheel is clamped. Match your existing bolts unless your wheel or spacer thickness has changed.
