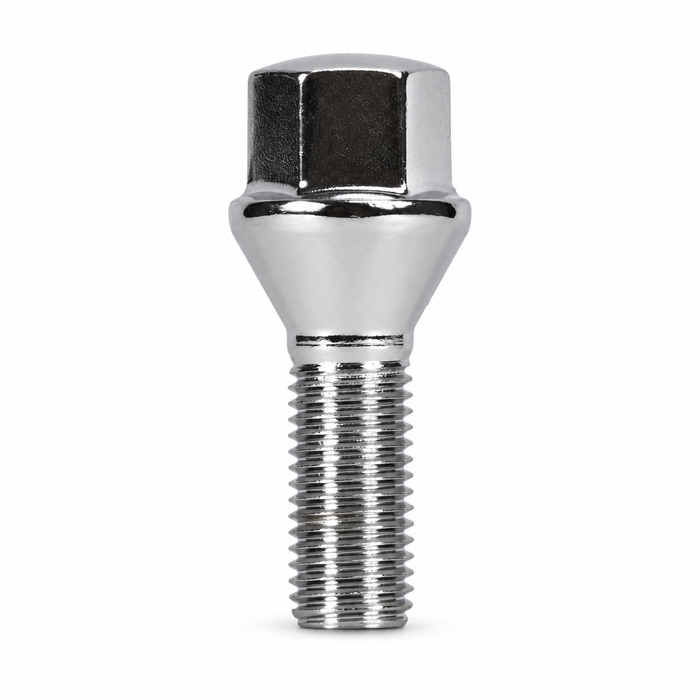

Lug Bolt 12mm x 1.50 Conical Seat 27mm Shank
Conical seat style 12mm x 1.50 threads lug bolts. The shank length is 27mm and the total length is 56mm. The hex size is 17mm. These lug bolts fit many BMW, Volkswagen, Audi applications. Please refer the following drawing for exact specification and size. Visit our application guide page for any application related information. Contact us for any questions. Price is for each piece.
Size:
Fitment and specs
- Thread size: 12mm x 1.50, conical seat
- Shank length: 27mm, total length: 56mm
- Hex size: 17mm
- Fits many BMW, Volkswagen, and Audi applications
- Sold per piece, so you can order exactly the count you need
Thread each bolt in by hand for the first few turns, then tighten in a star pattern and finish with a torque wrench set to your vehicle's spec from our torque reference chart. Re-torque after 50 to 100 miles of driving.
Common questions
How do I know the 27mm shank is right for my car?
Measure one of your existing bolts from under the seat to the tip and match it. Too short and you lose thread engagement in the hub; too long and the bolt can bottom out before it clamps the wheel.
Do conical seat and ball seat bolts interchange?
No. The conical taper has to match the wheel's bolt holes to center the wheel and hold clamping force. A ball seat bolt in a conical hole will not seat properly, so check the seat on your current bolts before ordering.
