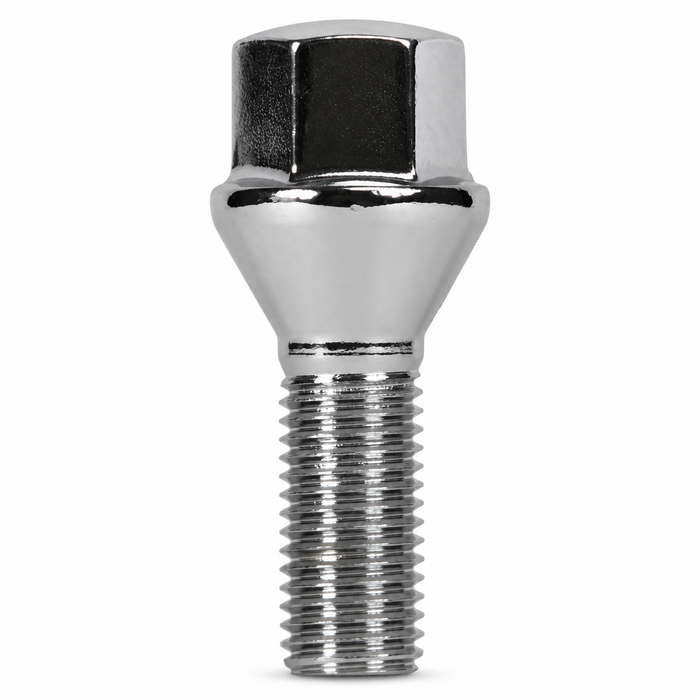

Lug Bolt 12mmx1.50 Conical Seat 40mm Shank
Conical seat style 12mm x 1.50 threads lug bolts. The shank length is 40mm and the overall length is 67mm. The hex size is 17mm. These lug bolts fit BMW, Volkswagen, Audi applications. Visit our application guide page for any application related information. Contact us for any questions. Price is for each piece.
Size:
Fitment and specs
- Thread size: 12mm x 1.50
- Seat type: conical (cone)
- Shank length: 40mm
- Fits the vehicles listed in the description above
Start every bolt by hand to protect the hub threads, then bring it up to your vehicle's factory specification with the torque reference chart as your guide. Re-torque after 50 to 100 miles of driving.
Common questions
Can I use a conical bolt where a ball seat is required?
No. Conical and ball seats are not interchangeable, and the wrong shape will not clamp the wheel properly. Match the seat your wheels were built for.
How do I know the shank length is right?
The shank must match your wheel and hub thickness so enough thread engages. This bolt uses a 40mm shank; compare it to the one you are replacing.
